(Mini-)ALU

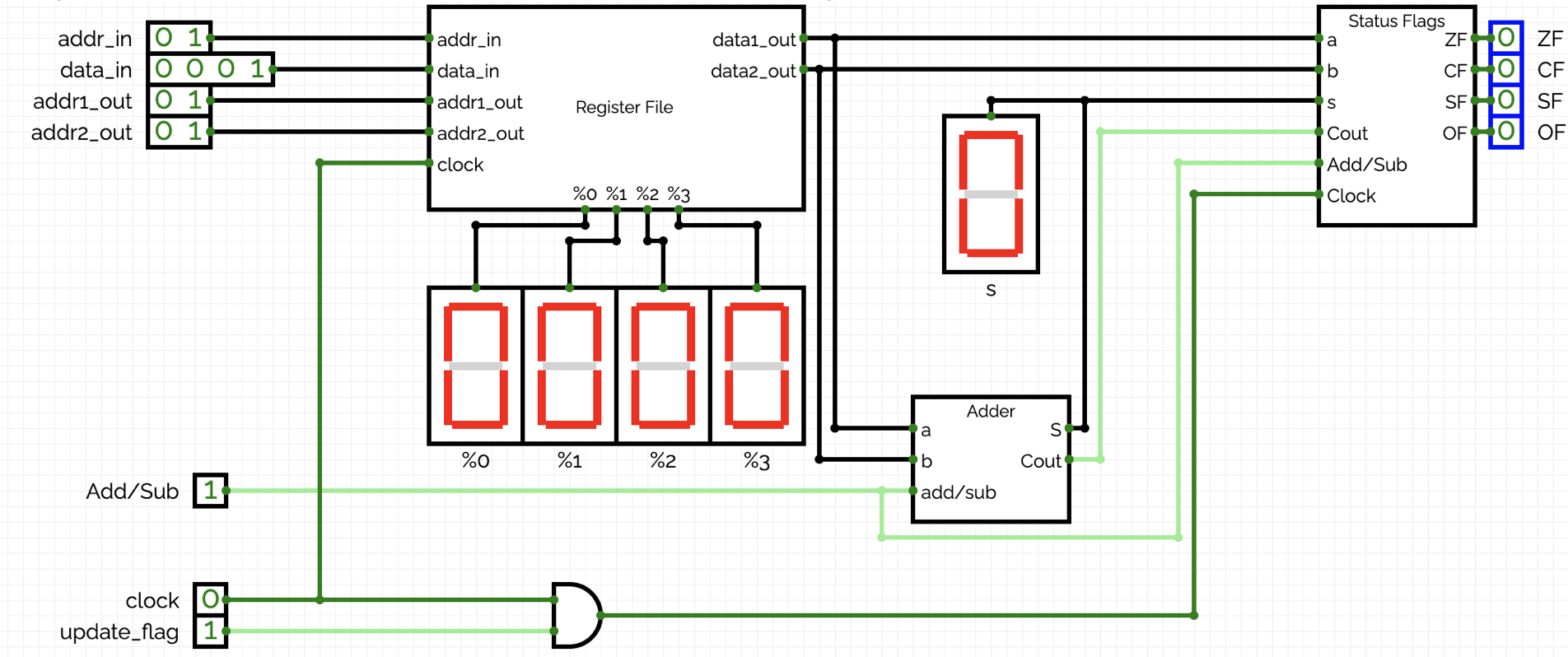

The following circuit demonstrates how the register file can be used together with the adder and the status flag module for a simple ALU (Arithmetical-Logical-Unit):

Tasks

• Create this circuit in CircuitVerse.

• Familiarize yourself with how the circuit works. Try performing the following operations:

  • Write the bit pattern 1111 into register %0. The status flags should not be modified.

  • Write the bit pattern 0001 into register %1. The status flags should not be modified.

  • Add the contents of registers %0 and %1, simultaneously updating the status flags.

  • Subtract the content of register %1 from %0, simultaneously updating the status flags.
