Truth Tables for Logic Gates

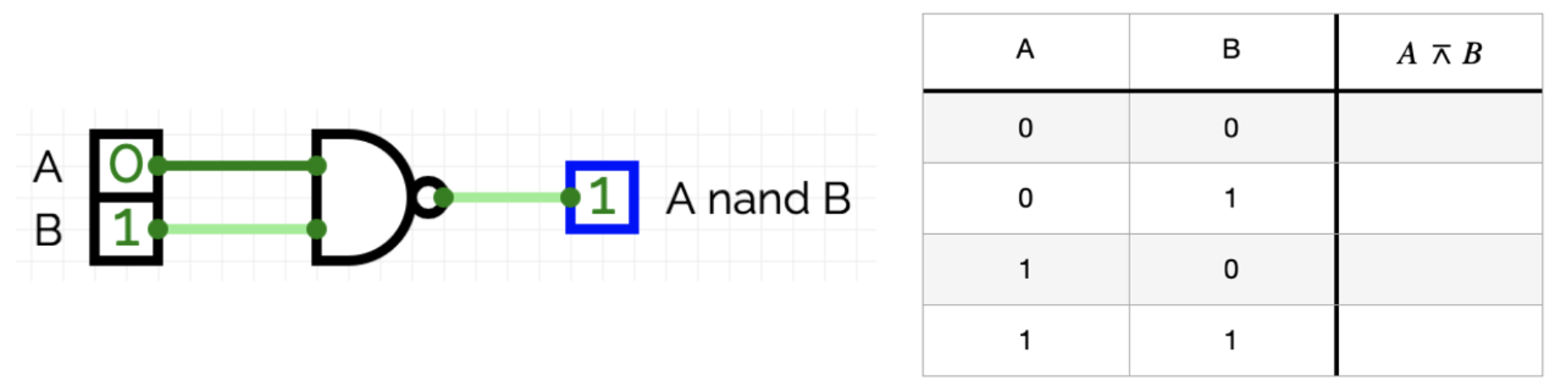

First, complete the truth table for a NAND gate:

Background

A NAND gate (logical NOT-AND, symbol: \(\barwedge\)) can be used as a basic building block to construct all other logic gates. This property is not only mathematically significant but also practical, as a NAND gate is sufficient to realize a variety of logic functions.

Example: NOT Gate

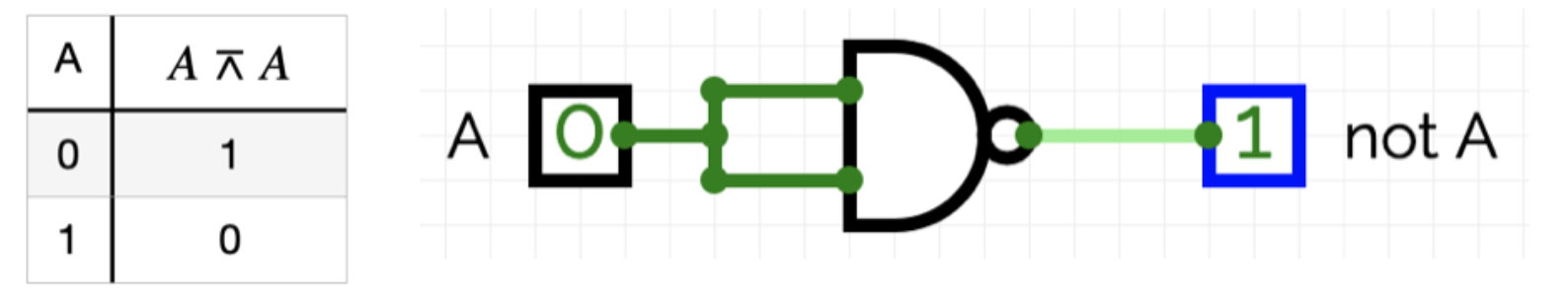

First, verify if the truth table for \(A \barwedge A\) is correctly filled out and if the expression is thus equivalent to the logical negation of \(A\). Then implement the expression as shown in CircuitVerse.

Exercise: AND Gate and OR Gate

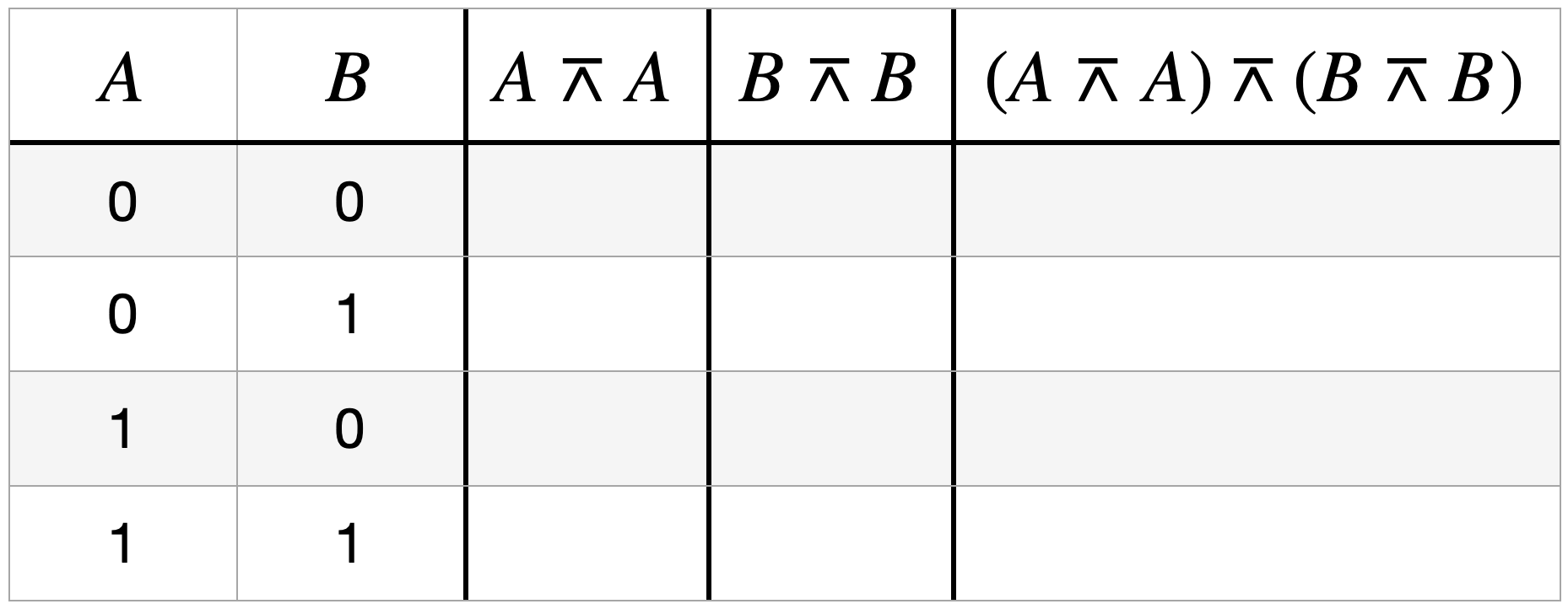

Fill out the truth table for the given expressions for the following logic gates. Then implement the expressions in CircuitVerse:

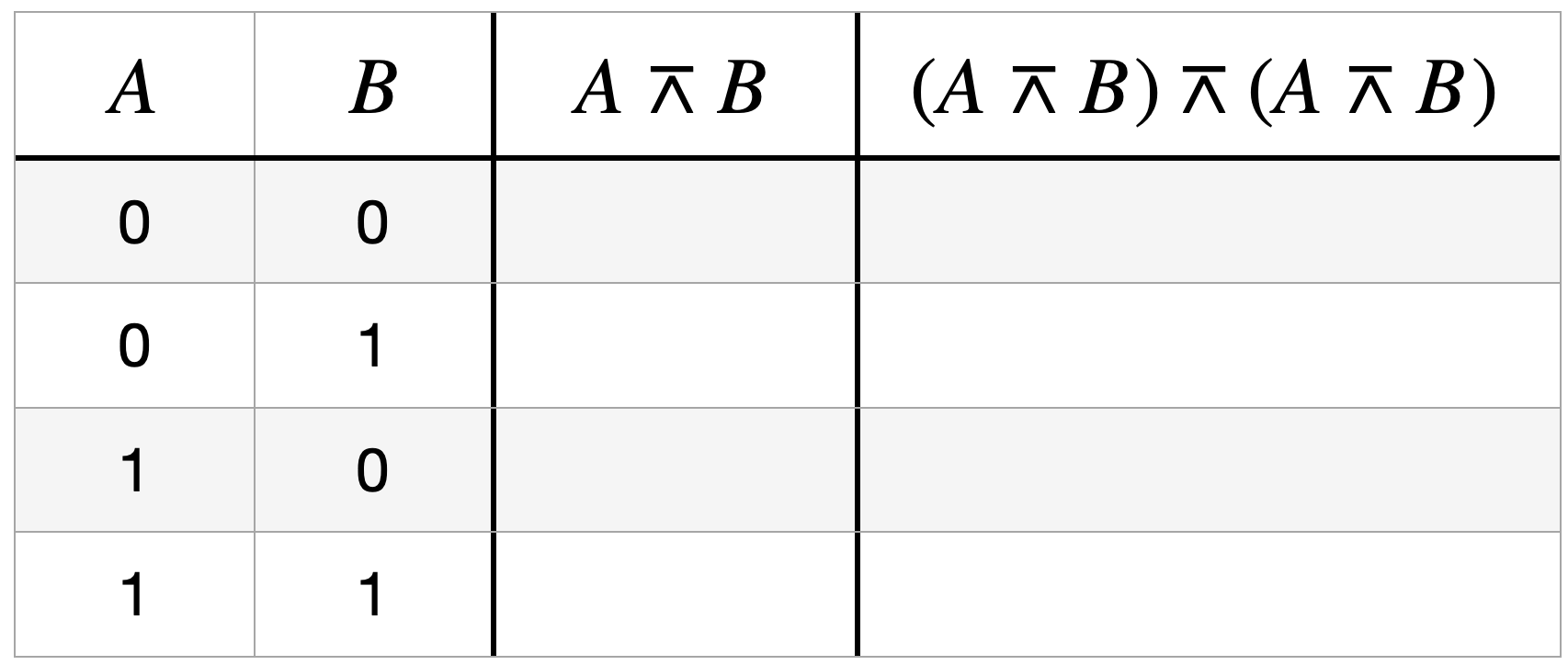

AND Gate with 2 NAND gates

OR Gate with 3 NAND gates
